The belt conveyor has two types, Stationary type and Movable type. It is widely used in mining, metallurgical and coal industry to transfer sand lump materials, or packaged materials.
The transfer system can be one single or combined with other transfer equipments according to various transferring requirements. Itis a kind of wide application conveying equipment. Infeed belt conveyor is widely used in light industry, electronics, food, chemical, wood, machinery, grain and other industries.

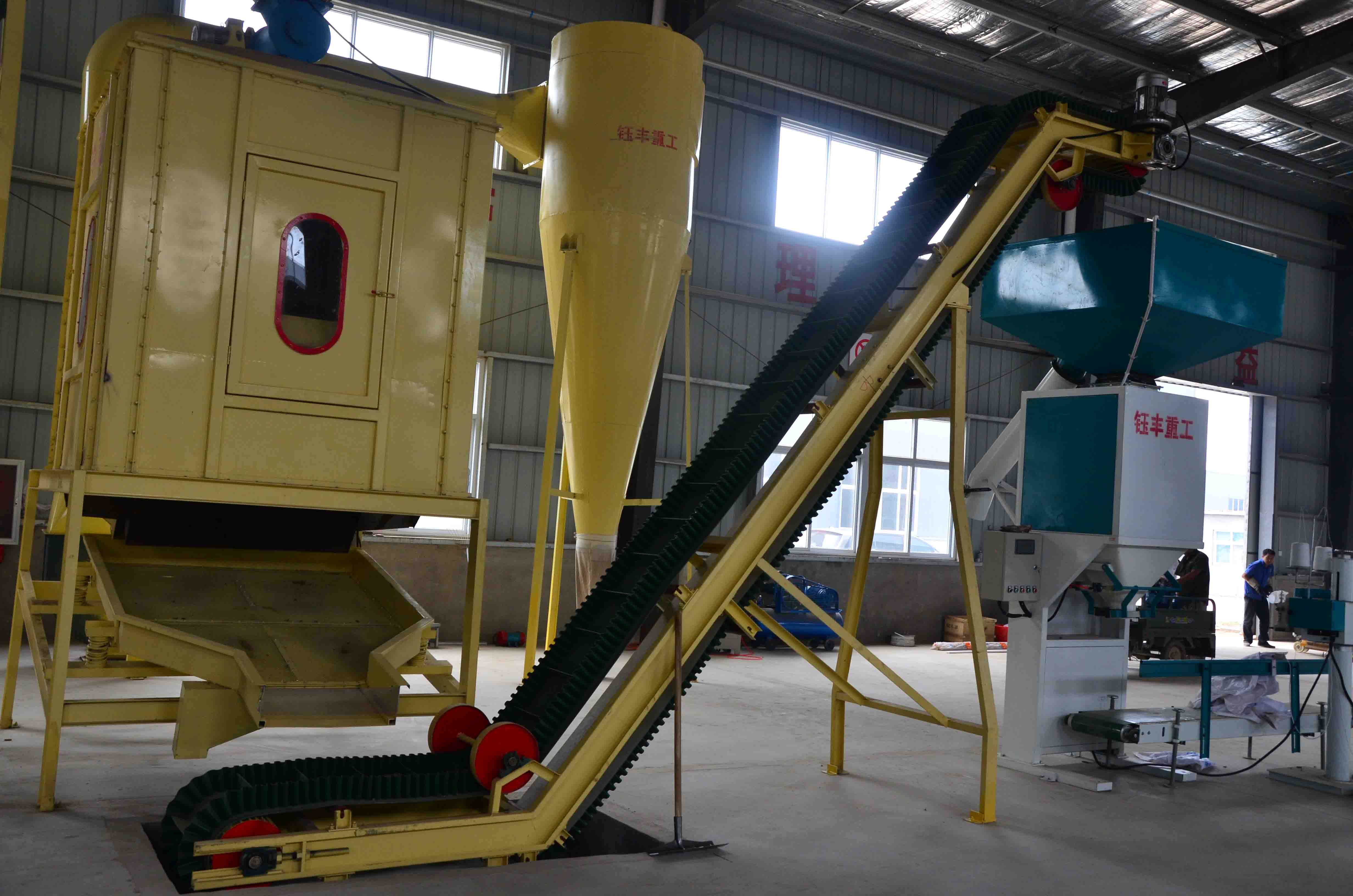

Inclined belt conveyor can be divided into horizontal belt conveyor and inclined belt conveyor.
| Belt Width(mm) |
Conveying Length(m)
Power(kw) |
Conveying Speed(m/s) |
Conveying Capaciy
(t/h) |
| 400 |
<=10m
3kw |
12-15m
3-4kw |
15-30m
4-7.5kw |
1.25-2.0 |
30-60 |
| 500 |
<=10m
3kw |
12-15m
4-5.5kw |
15-30m
5.5-7.5kw |
1.25-2.0 |
40-80 |
| 650 |
<=10m
4kw |
12-15m
7.5kw |
15-30m
7.5-11kw |
1.25-2.0 |
80-120 |
| 800 |
<=10m
4kw |
12-15m
7.5kw |
15-30m
7.5-15kw |
1.25-2.0 |
120-200 |
| 1000 |
<=10m
5.5kw |
10-20m
7.5-11kw |
20-40m
11-22kw |
1.25-2.0 |
200-320 |
| 1200 |
<=10m
7.5kw |
10-20m
7.5-15kw |
20-40m
15-30kw |
1.25-2.0 |
290-480 |
| 1400 |
<=10m
11kw |
10-20m
15-22kw |
20-40m
22-45kw |
1.25-2.0 |
400-680 |
| 1600 |
<=10m
15kw |
10-20m
22-30kw |
20-50m
30-75kw |
1.25-2.0 |
600-1080 |
What is the running temperature of belt conveyor?
-20 ~ +40 ℃
It is a flat type or inclind type?
both we can do that, And large dip angle type is popular.
What is the width of belt?
400-2400mm optional.
What is the Quality of rubber belt?
Resistant wear, heat, oil and Excellent Troughability
